Water + Polymer Quench Filter

Quenching polymer and water solution for induction.
The baths of " water-polymer " are to be maintained with a filtration 100µ approximately to limit the quantity of  physical pollutants.

If the bath is not polluted by oils coming from a bad washing, its maintenance is carried out by static hydrocyclone, an self-cleaning filter or a static filter (bag or basket).

To avoid any loss of product, the drain is filtered in a bag filter of 100µ, or less.

IMPORTANT:

To allow the easy collecting of the particles in the system of purification it is essential to envisage a sufficient mechanical agitation to prevent the deposit of the particles at the bottom of the tank.

We have a solution using the " eductors ", who are “venturi” to be placed in bottom of the tank.

These eductors allow the use of smaller pumps, allowing considerable economies on energy used.

Please consult LEFCO for the implementation of these products.

3 cases can arise:

To treat only the bath water-polymer:

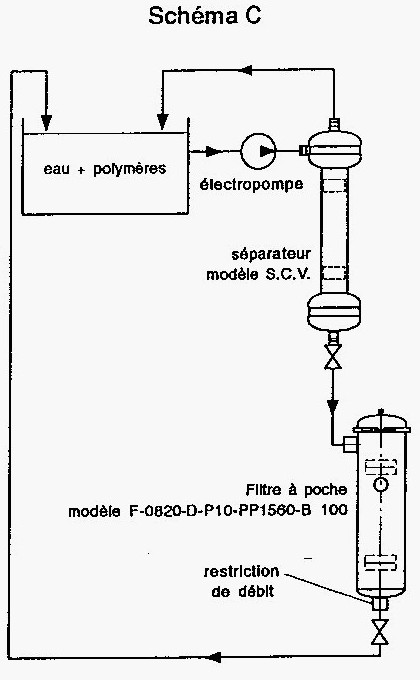

Diagram "C" opposite.

The flow is calculated by our services to ensure a good purification of the solution water + polymer.

To protect the watering circuit:

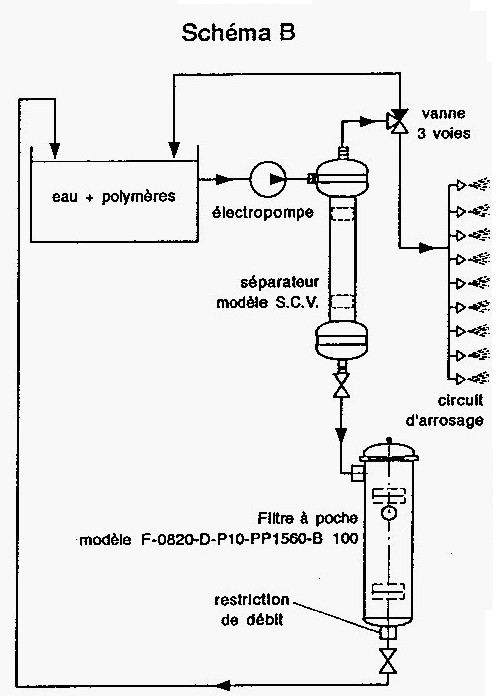

Diagram "B" opposite.

Be careful:  the bath will not be protected because the flow-rate of the watering circuit is not sufficient for the purification of the bath.

To treat the bath and protect the heat exchanger:

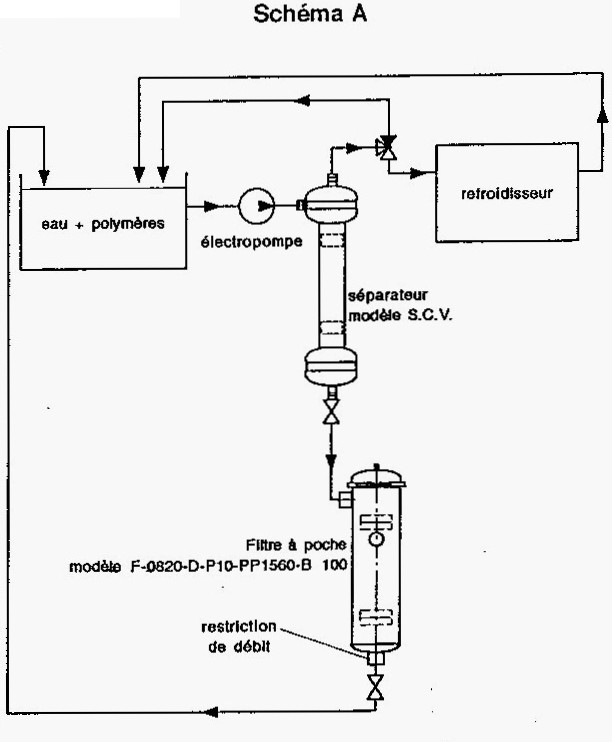

 Diagram " A" opposite.

When the exchanger does not function, a valve three ways makes it possible to return to the tank.
